Inspection System
PACKVISION LK Empty Crate Inspection
Inspect empty returnable crates for damage and residual objects before reuse
Application
Suitable empty crates for packing

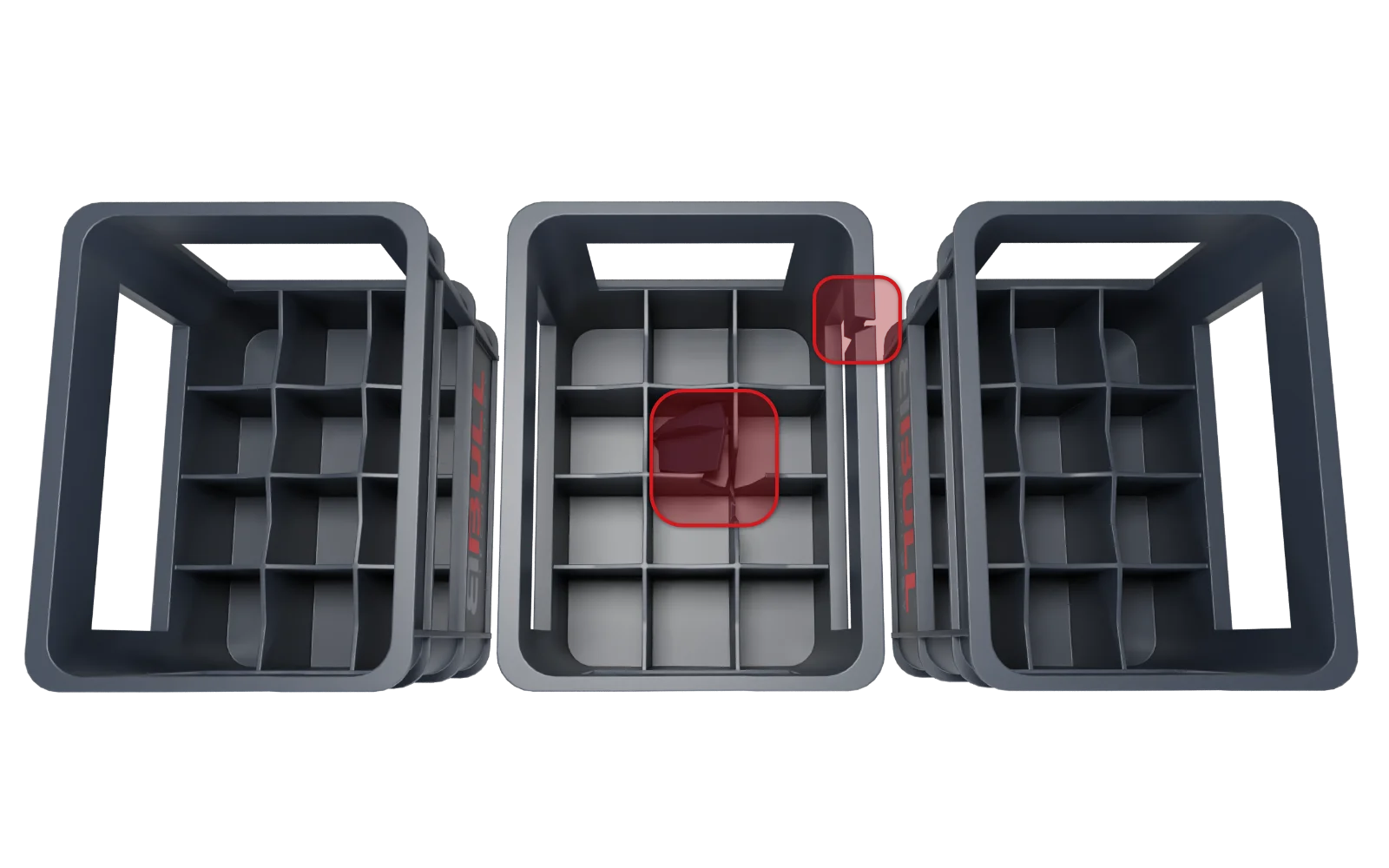

Bottle remnants, foreign objects or damaged compartments can remain in crates after unpacking. PACKVISION LK inspects empty returnable crates for these faults, as well as crate deformation and damaged handles. As part of the PACKVISION family, it provides inspection results to help keep unsuitable crates out of the production flow before reuse.
- Line positionPost unpacker
- ProductsGlass, Ref Pet, Oneway Pet, Crate
- TasksCrate Packablity, Crate Handle Damage, Crate Deformation
Operating principle
Stereo inspection with crate-edge referencing

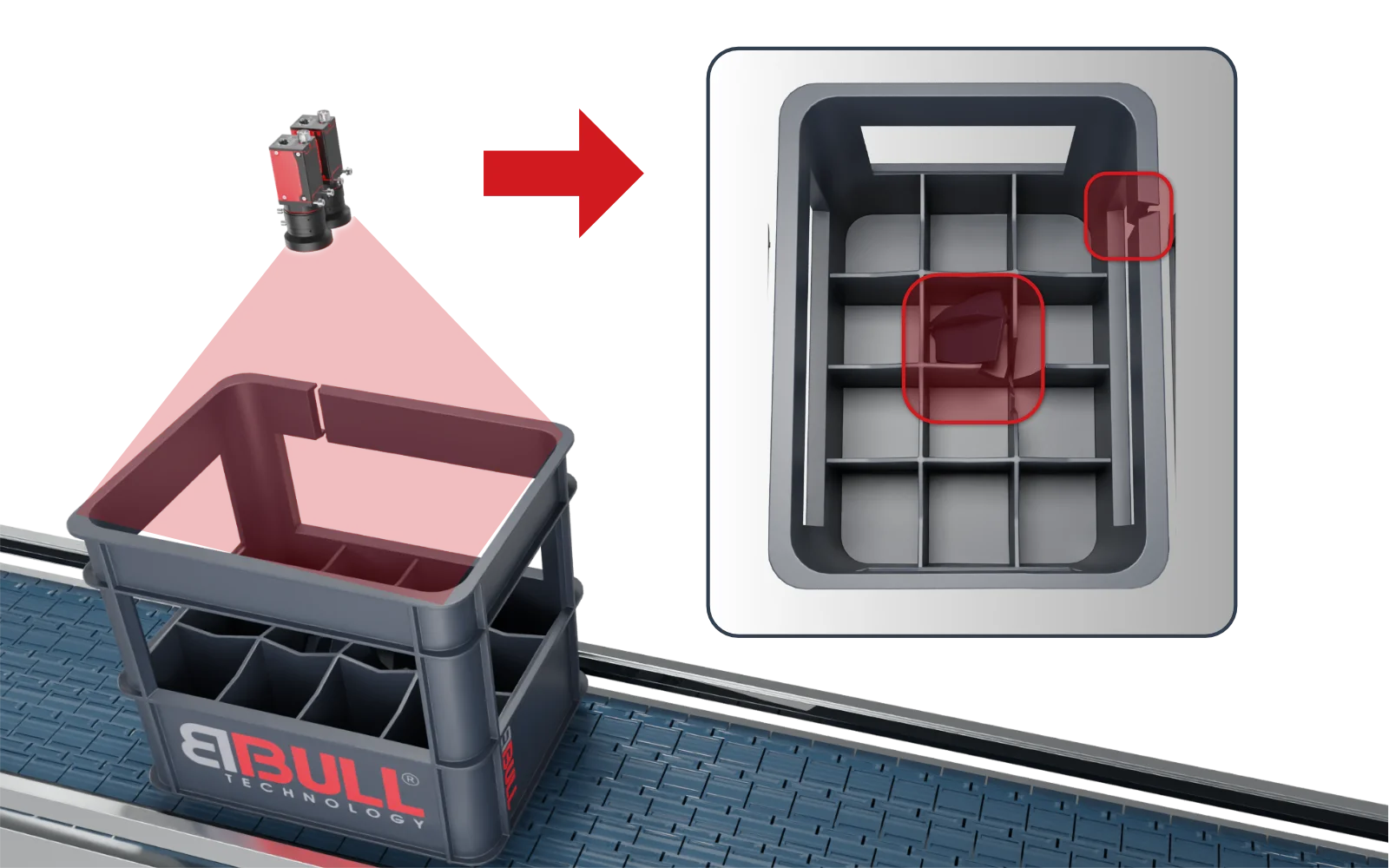

Two cameras capture the crate and provide depth information for empty crate inspection. Measurement at the crate’s top edge establishes a reference for height checks, while software-supported calibration helps maintain consistent results. The compact inspection bridge includes integrated top illumination and one-sided height adjustment. Optional underfloor illumination improves contrast; FRESNEL extends inspection to crate bottoms and reduces perspective distortion.
- PerformanceUp to 7,000 cph
Benefits
- Residual bottles and foreign objects are detected before reuse so they do not pass unnoticed into the next process step.
- Inspection of compartments, crate shape and handles helps keep unsuitable crates away from packing.
- Optical depth measurement enables height checks without an additional ultrasound array.
- Crate referencing and image processing support stable results despite minor position changes and colour or reflection effects.

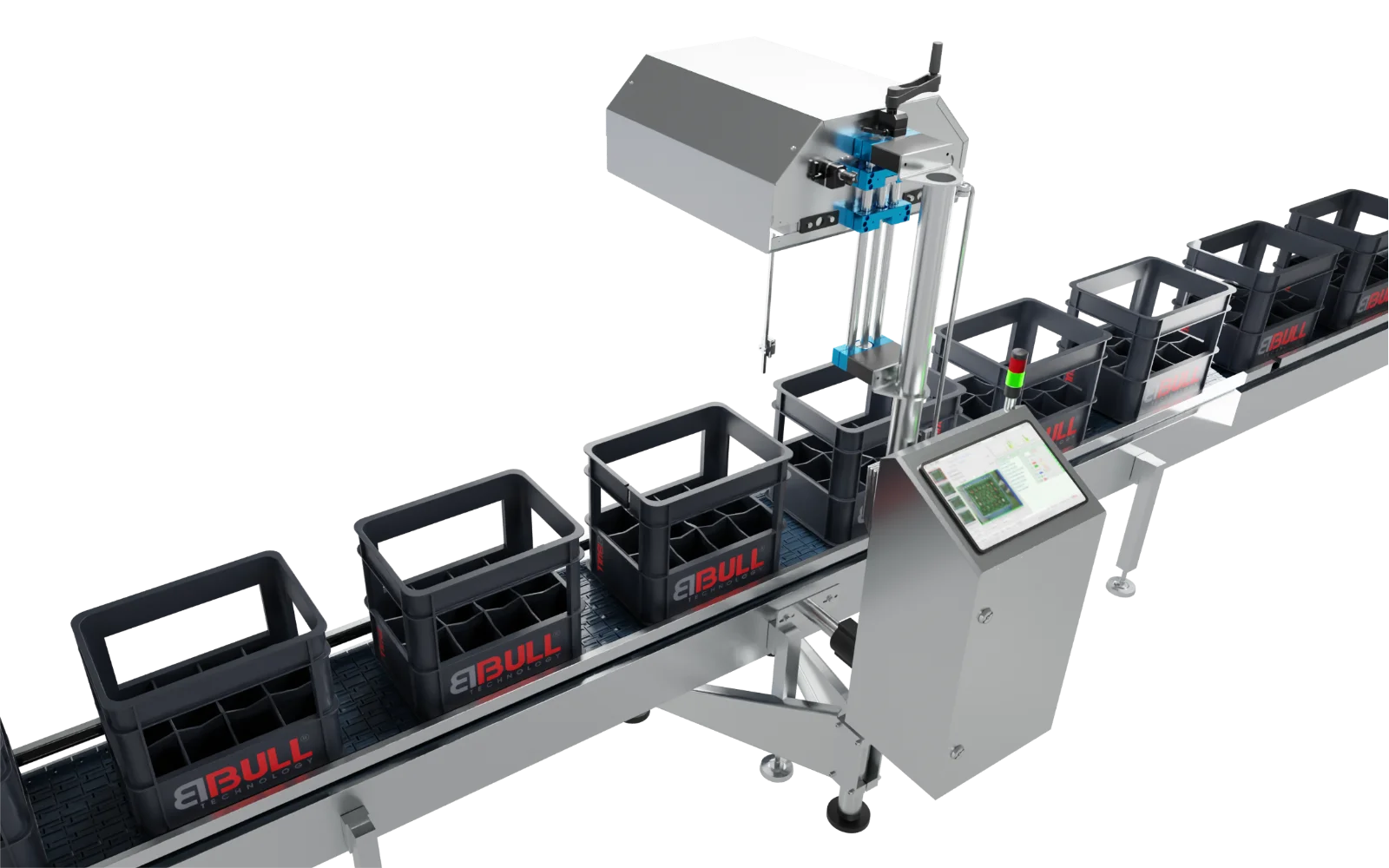

- The compact inspection bridge supports integration into existing lines with limited space.
- Underfloor illumination and FRESNEL allow the inspection scope to be adapted to the application.
Features

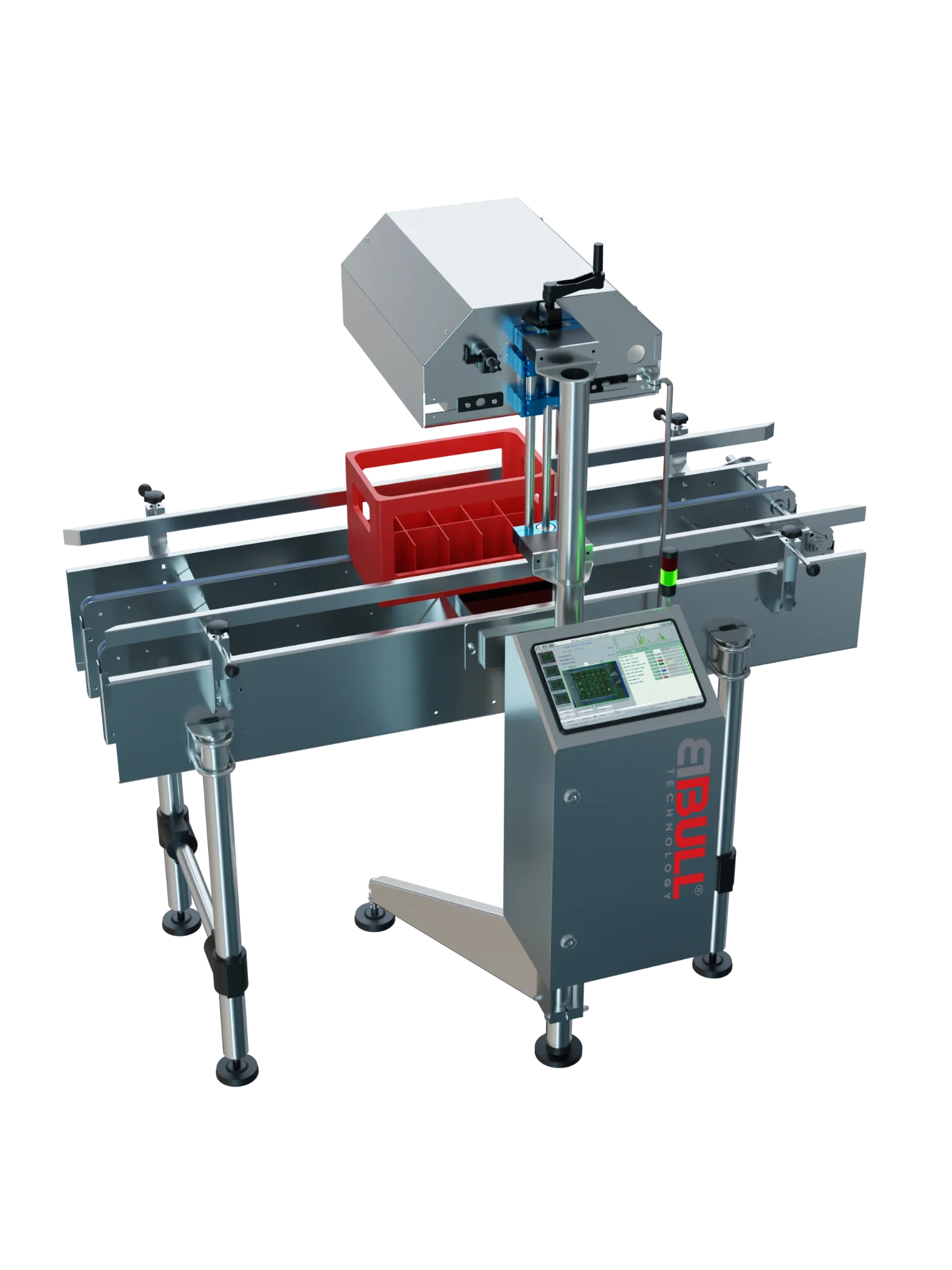

- Base configuration: PACKVISION STEREO with two cameras and empty crate inspection software.
- Detection of residual bottles, foreign objects in compartments and broken bottles.
- Inspection for incorrect or deformed compartments, deformed crates and incorrect crate height.
- Detection of protruding and broken handles.
- Reference measurement at the crate's top edge and software-supported calibration.

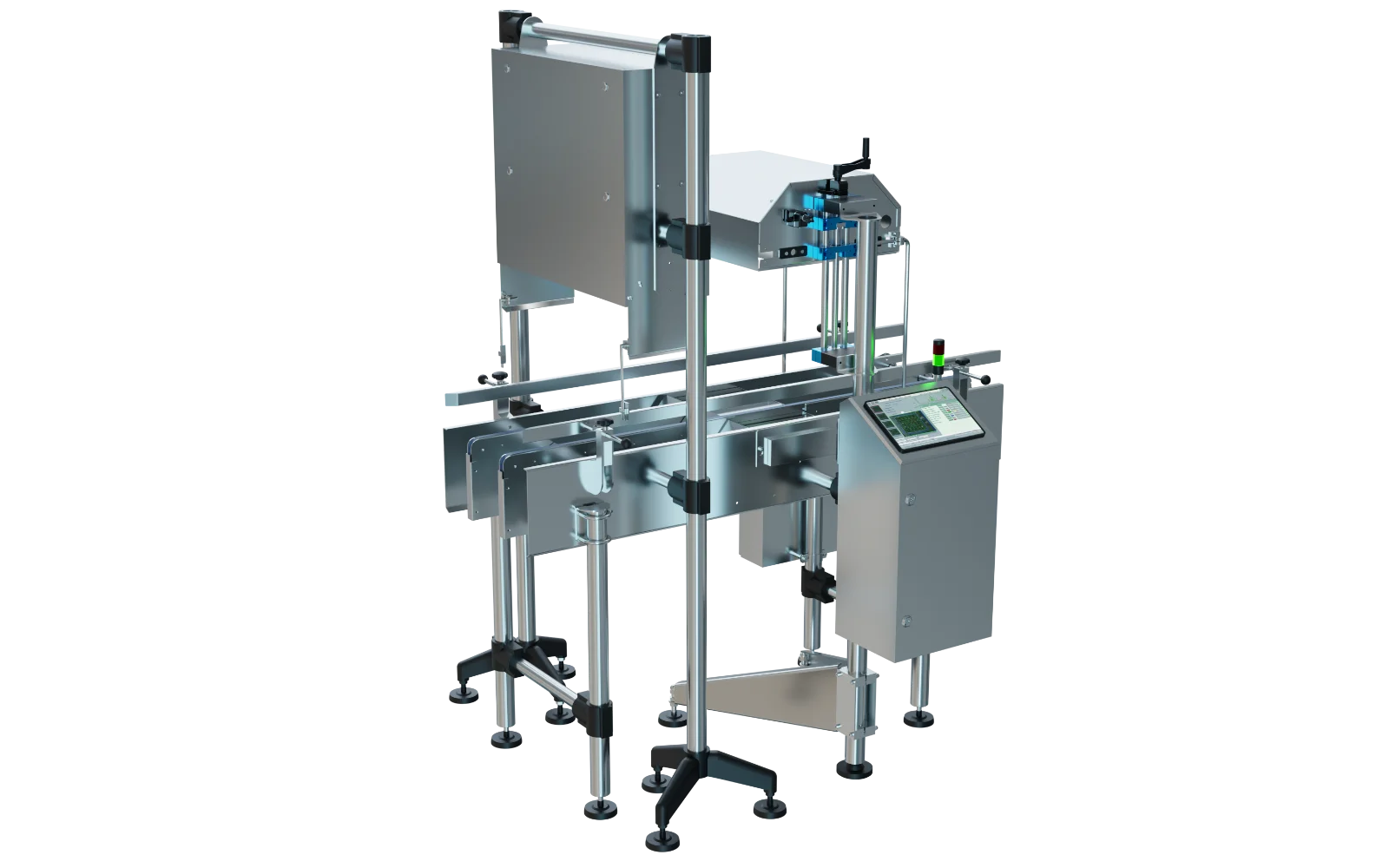

- Integrated top illumination and one-sided height adjustment.
- Optional: underfloor illumination to improve lighting and contrast.
- Optional: FRESNEL inspection for broken compartment bottoms and foreign objects on the crate floor, with perspective correction.
